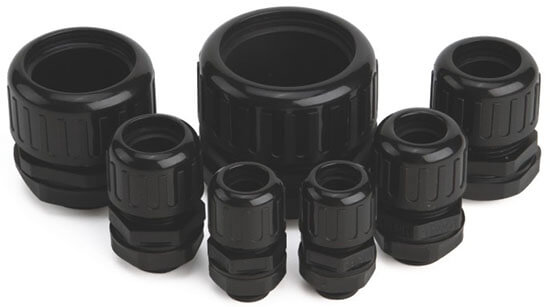

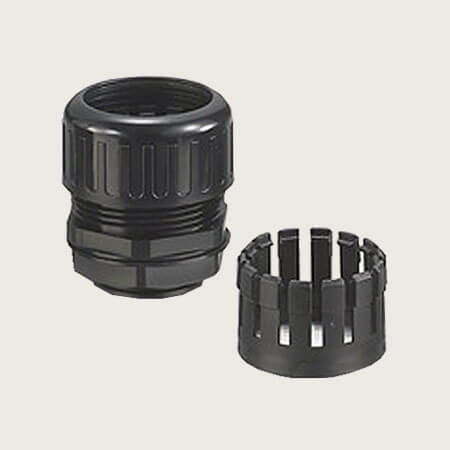

Anti-Stretch Connector
- PRODUCT DETAIL
Products Technical Date:
1. Material: Polyamide(pa)
2. Protection Levels: with the best anti stretch to protect plastic flexible conduit.
3. Working Temperature: -20℃~ +100℃
4. Threads: PG, Metric, G(PF)
5. Packaging: PE bags, with carton. Packing quantity based on the specification.

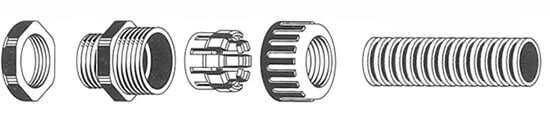

6. Structure:
7. Size:
| Conduit Outer Diameter | Metric | PG | G(PF) | |||
| Types | Thread | Types | Thread | Types | Thread | |
| 10.0mm | KJM1012 | M12*1.5 | KJP1007 | PG7 | ||
| KJP1009 | PG9 | |||||
| 13.0mm | KJM1316 | M16*1.5 | KJP1309 | PG9 | KJG13-3/8 | 3/8 |
| KJP1311 | PG11 | |||||
| 15.8mm | KJM1616 | M16*1.5 | KJP1611 | PG11 | KJG16-3/8 | 3/8 |
| KJM1620 | M20*1.5 | KJP1613 | PG13.5 | KJG16-1/2 | 1/2 | |
| KJM1622 | M22*1.5 | KJP1616 | PG16 | |||
| 18.5mm | KJM1816 | M16*1.5 | KJP1811 | PG11 | KJG18-3/8 | 3/8 |
| KJM1820 | M20*1.5 | KJP1813 | PG13.5 | KJG18-1/2 | 1/2 | |
| KJM1822 | M22*1.5 | KJP1816 | PG16 | |||
| 21.2mm | KJM2120 | M20*1.5 | KJP2116 | PG16 | KJG21-1/2 | 1/2 |
| KJM2125 | M25*1.5 | KJP2121 | PG21 | KJG21-3/4 | 3/4 | |
| 25.0mm | KJM2525 | M25*1.5 | KJP2521 | PG21 | KJG25-3/4 | 3/4 |
| 28.5mm | KJM2825 | M25*1.5 | KJP2821 | PG21 | KJG28-3/4 | 3/4 |
| 34.5mm | KJM3432 | M32*1.5 | KJP3429 | PG29 | KJG34-1 | 1 |
| 42.5mm | KJM4240 | M40*1.5 | KJP4236 | PG36 | KJG42-1-1/4 | 1-1/4 |
| KJM4250 | M50*1.5 | KJP4242 | PG42 | KJG42-1-1/2 | 1-1/2 | |
| 54.5mm | KJM5450 | M50*1.5 | KJP5448 | PG48 | KJG54-1-1/2 | 1-1/2 |
| KJM5463 | M63*1.5 | |||||
Remarks:
MOQ: 10pcs.
Payments: T/T, Western Union, Paypal are available. Others are negotiated.
Customizable Service: anti-stretch connector customizable is workable for us. Such as sizes, logo, packing quantity, packages etc.
