Big Corrugated Conduit
- PRODUCT DETAIL

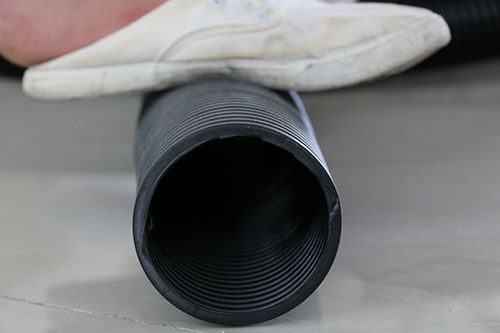

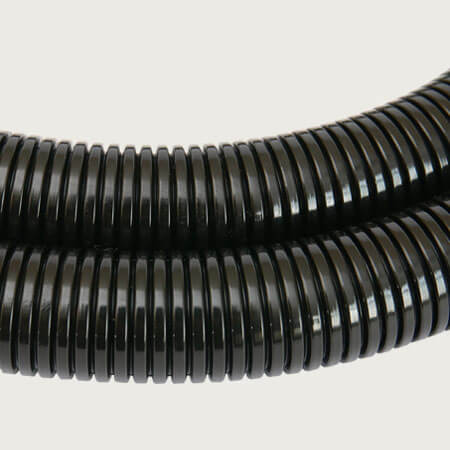

91*106mm big corrugated conduit
91*106mm big corrugated conduit
Products introduction:
1. Material:
Polyethylene(PE).
Nylon(pa) and Polypropylene(pp) are also workable.
2. Colors:
black, other colors could be customizable.
3. Working Temperature:
-20℃~+100℃ (+120℃ in a short time)
4. Certificates:
CE, Rohs, ISO9001:2008.
5. Size Chart:
| Types | Inside Diameter(mm) | Outside Diameter(mm) | Length of Roll(m) |
| Flex-PE-7 | 4.5 | 7.0 | 200 |
| Flex-PE-8 | 5.5 | 8.5 | 100 |
| Flex-PE-10 | 6.5 | 10.0 | 100 |
| Flex-PE-11 | 8.5 | 11.5 | 100 |
| Flex-PE-13 | 10.0 | 13.0 | 100 |
| Flex-PE-15 | 12.0 | 15.8 | 100 |
| Flex-PE-18 | 14.3 | 18.5 | 100 |
| Flex-PE-20 | 16.0 | 20.0 | 100 |
| Flex-PE-21 | 17.0 | 21.2 | 100 |
| Flex-PE-25 | 21.0 | 25.0 | 100 |
| Flex-PE-28 | 23.0 | 28.5 | 100 |
| Flex-PE-34 | 29.0 | 34.5 | 50 |
| Flex-PE-42 | 36.0 | 42.5 | 25 |
| Flex-PE-54 | 48.0 | 54.5 | 25 |
| Flex-PE-67 | 56.3 | 67.2 | 25 |
| Flex-PE-80 | 66.5 | 80.0 | 20 |
| Flex-PE-106 | 91.0 | 106.0 | 20 |
|
Tolerance: ±0.2mm |
|||
Remarks:
MOQ: 100m
Payments: T/T, Western Union, Paypal are available. Others are negotiated.
Custom Service: big corrugated conduit custom service is workable for us. Such as materials, sizes, logo, packing quantity, packages, split, fire-proof, pull the wire in requirements etc.
