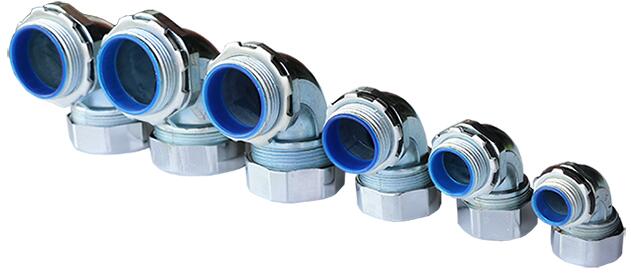

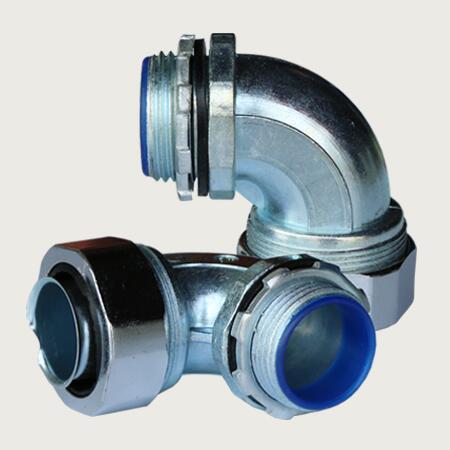

90° Conduit Fittings
- PRODUCT DETAIL
Product introduction
1. Material: Zinc Alloy
2. Coating: Zinc, Nickel, Chrome
3. Protection Rating: IP67
4. Using place: Widely used in the wire and cable protection, and connector the flexible metal conduit or pvc coated conduit with machine.
5. Size:
|
Mached Conduit Diameter |
Thread |
|
|
Metric |
Inch |
G |
|
φ12 |
3/8″ |
G1/2″ |
|
φ15（16） |
1/2″ |
G1/2″ |
|
φ20（19） |
3/4″ |
G3/4″ |
|
φ25 |
1″ |
G1″ |
|
φ32 |
1-1/4″ |
G1-1/4″ |
|
φ38（40） |
1-1/2″ |
G1-1/2″ |
|
φ51（50） |
2″ |
G2″ |
|
φ64（70） |
2-1/2″ |
G2-1/2″ |
|
φ75（80） |
3″ |
G3″ |
|
φ100 |
4″ |
G4″ |
Remarks:
MOQ: 20pcs
Payment: Paypal, T/T, Western Union are available.
General Payment: 30% deposit paid in advance, T/T balance before delivery.
Customizable Service: Flexible metal conduit fittings customizable are vailable for us. Such as packing quantity, label, packages, etc.
If you have any questions about flexible metal conduit fittings, welcome to send us an email for assisatance.
