Flexible PVC Conduit
- PRODUCT DETAIL

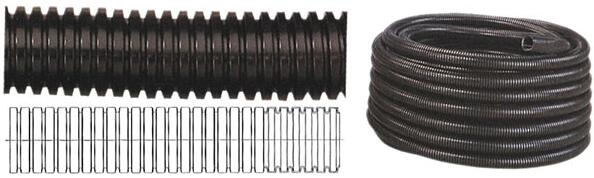

Flexible PVC Conduit Structure
Products introduction:
1. General Material: Polyvinyl chloride(pvc). Polyamide(pa), Polypropylene(pp), Polyethylene(pe) are also workable.
2. Colors: White (general), others could be customizable
3. Working Temperature: -20℃~+90℃
4. Our Thrength: Flexible pvc conduit is used to protect wire and cables. Widely used in machinery, construction, auto, metro, automation etc.
5. Size:
| Types | Inside Diameter(mm) | Outside Diameter(mm) | Length of Roll(m) |
| Flex-PVC-16 | 12 | 16 | 50 |
| Flex-PVC-20 | 16 | 20 | 50 |
| Flex-PVC-25 | 20 | 25 | 50 |
| Flex-PVC-32 | 25 | 32 | 30 |
| Flex-PVC-40 | 32 | 40 | 30 |
| Flex-PVC-50 | 40 | 50 | 25 |
| Flex-PVC-63 | 50 | 63 | 15 |
| Flex-PVC-70 | 63 | 75 | 15 |
6. Package:
Remarks:
MOQ: 100m
Payment: Paypal, T/T, Western Union are available, others are negotiated.
Customizable Service: Flexible pvc conduit customizable are vailable for us. Such as packing quantity, label, packages, color, fire-proof property, split etc.
If you have any questions about flexible pvc conduit, Welcome to send us emails for assistance.
