Long Thread Cable Gland

■ Product introduction: 1. Material:  nickel plated brass, or stainless steel cable gland 2. Thread: metric 3. Working Temperature: -40℃~+100℃ 4. Extra: customizable service is workable for us.   ■ Product Structure: cable gland structure   ■ Product Size(long thread type): Thread Products Types Cable Range Thread Length Spanner Size M8*1 FLEX-NBL-M8 2-5 8 12 ...
  • PRODUCT DETAIL

Metric Cable Glands

■ Product introduction:

1. Material:

nickel plated brass, or stainless steel cable gland

2. Thread:

metric

3. Working Temperature:

-40℃~+100℃

4. Extra:

customizable service is workable for us.

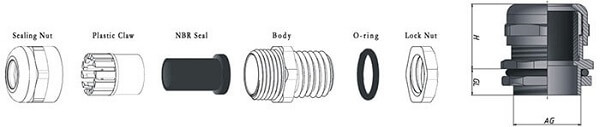

■ Product Structure:

metric cable glands structure
cable gland structure



■ Product Size(long thread type):

Thread
Products Types
Cable Range
Thread Length
Spanner Size
M8*1
FLEX-NBL-M8
2-5
8
12
M10*1
FLEX-NBL-M10
3-6.5
10
14
M12*1.5
FLEX-NBL-M12
3-6.5
10
14
M14*1.5
FLEX-NBL-M14
4-8
12
17
M16*1.5
FLEX-NBL-M16
4-8
12
18
M18*1.5
FLEX-NBL-M18
5-10
12
20
M20*1.5
FLEX-NBL-M20
6-12
12
22
M22*1.5
FLEX-NBL-M22
10-14
12
24
M24*1.5
FLEX-NBL-M24
10-14
12
24/27
M25*1.5
FLEX-NBL-M25-14
10-14
12
24/27
FLEX-NBL-M25-18
13-18
12
30/27
M27*1.5
FLEX-NBL-M27
13-18
12
30
M28*1.5
FLEX-NBL-M28
13-18
12
30
M30*1.5
FLEX-NBL-M30
13-18
12
30/32
M32*1.5
FLEX-NBL-M32
15-22
14
35
M33*1.5
FLEX-NBL-M33
15-22
14
35
M36*1.5
FLEX-NBL-M36
18-25
14
40
M37*1.5
FLEX-NBL-M37
18-25
14
40
M40*1.5
FLEX-NBL-M40-25
18-25
15
40/45
FLEX-NBL-M40-30
22-30
15
45
M42*1.5
FLEX-NBL-M42
22-30
15
45
M47*1.5
FLEX-NBL-M47
25-33
15
50
M48*1.5
FLEX-NBL-M48
25-33
15
50/52
M50*1.5
FLEX-NBL-M50
32-38
15
57/55
M54*1.5
FLEX-NBL-M54
32-38
15
57
M60*1.5
FLEX-NBL-M60
37-44
16
64
M63*1.5
FLEX-NBL-M63
37-44
16
64/68
M64*2
FLEX-NBL-M64
37-44
16
64/68
M72*2
FLEX-NBL-M72
42-52
18
78
M75*2
FLEX-NBL-M75
42-52
18
78/80
M80*2
FLEX-NBL-M80
55-62
20
88
M88*2
FLEX-NBL-M88
65-70
20
94
M100*2
FLEX-NBL-M100
78-84
22
110



■ Payment Detail:

MOQ:

100pcs

Payments:

T/T, Western Union, Paypal are available.

General Payment:

30% deposit paid in advance, T/T balance before delivery.
