Multi Hole Cable Gland
- PRODUCT DETAIL
■ Product introduction:
Material:
nylon (UL approved)
Thread:
Metric, PG thread
Working Temperature:
-40℃~+100℃
■ Product Structure:

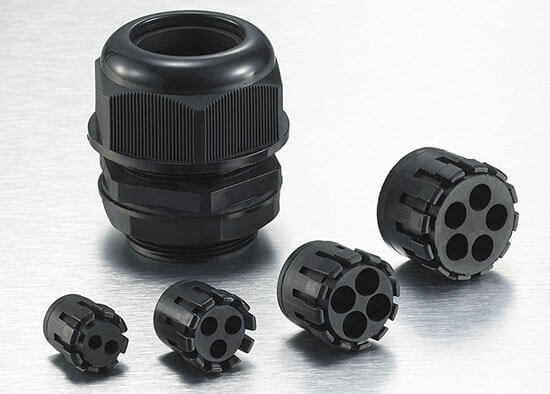

multi hole cable gland show

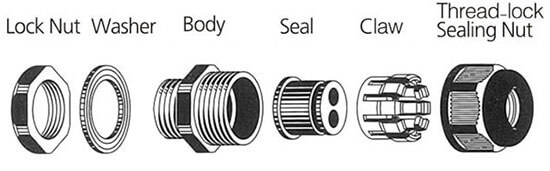

multi hole cable gland structure
■ Product Size:
Metric Thread
|
Seal Holes
|
Thread
|
Rroduct Types
|
Cable Range(mm)
|
Thread Lenth(mm)
|
Spanner Size(mm)
|
 |
M12*1.5
|
MG12A-H2-03
|
1.2-3
|
9
|
18/19
|
|
M16*1.5
|
MG16A-H2-04
|
1.6-4
|
15
|
22/22 | |
| M18*1.5 | MG18A-H2-04 | 1.6-4 | 15 | 24/22 | |
|
M20*1.5
|
MG20A-H2-06
|
2.5-6
|
15
|
27/27 | |
|
M22*1.5
|
MG22A-H2-06
|
2.5-6
|
15
|
27/27 | |
|
M25*1.5
|
MG25A-H2-06
|
3-6.5
|
15
|
33/33 | |
|
MG25A-H2-08
|
4-8
|
15
|
33/33 | ||
|
M32*1.5
|
MG32A-H2-10
|
5-10
|
15
|
41/41 | |
|
M40*1.5
|
MG40A-H2-13
|
11-13
|
15
|
41/41 | |
 |
M12*1.5
|
MG12A-H3-02
|
1.2-2.6
|
9
|
18/19 |
|
M16*1.5
|
MG16A-H3-04
|
1.6-4
|
15
|
22/22 | |
|
M20*1.5
|
MG20A-H3-05
|
2-5
|
15
|
27/27 | |
|
M22*1.5
|
MG22A-H3-05
|
2-5
|
15
|
27/27 | |
|
M25*1.5
|
MG25A-H3-05
|
2-5
|
15
|
33/33 | |
|
MG25A-H3-08
|
4-8
|
15
|
33/33 | ||
|
M32*1.5
|
MG32A-H3-10
|
5-10
|
15
|
41/41 | |
| M40*1.5 | MG40A-H3-12 | 10-12 | 20 | 50/50 | |
| M50*1.5 | MG50A-H3-12 | 10-12 | 22 | 62/62 | |
|
M63*1.5
|
MG63A-H3-13
|
10-13
|
25
|
75/78 | |
 |
M12*1.5
|
MG12A-H4-02
|
1-2.3
|
9
|
18/19 |
|
M16*1.5
|
MG16A-H4-03
|
1.2-3
|
15
|
22/22 | |
|
M20*1.5
|
MG20A-H4-02
|
1-2.5
|
15
|
27/27 | |
|
MG20A-H4-03
|
1.5-3.5
|
15
|
27/27 | ||
|
MG20A-H4-04
|
2-4.5
|
15
|
27/27 | ||
|
M22*1.5
|
MG22A-H4-02
|
1-2.5
|
15
|
27/27 | |
|
MG22A-H4-03
|
1.5-3.5
|
15
|
27/27 | ||
|
MG22A-H4-04
|
2-4.5
|
15
|
27/27 | ||
|
M25*1.5
|
MG25A-H4-05
|
2-5
|
15
|
33/33 | |
|
MG25A-H4-06
|
4-6
|
15
|
33/33 | ||
|
MG25A-H4-07
|
3.5-7
|
15
|
33/33 | ||
|
M32*1.5
|
MG32A-H4-07
|
5-7
|
15
|
41/41 | |
|
MG32A-H4-09
|
4.5-9
|
15
|
41/41 | ||
|
M40*1.5
|
MG40A-H4-12
|
10-12
|
20
|
50/50 | |
 |
M20*1.5
|
MG20A-H5-03
|
1.5-3
|
15
|
27/27 |
|
M22*1.5
|
MG22A-H5-03
|
1.5-3
|
15
|
27/27 | |
|
M25*1.5
|
MG25A-H5-06
|
3-6
|
15
|
33/33 | |
|
M32*1.5
|
MG32A-H5-08
|
4-8
|
15
|
41/41 | |
 |
M16*1.5
|
MG16A-H6-02
|
1-2
|
15
|
22/22 |
|
M25*1.5
|
MG25A-H6-05
|
2.4-5.3
|
15
|
33/33 | |
|
M32*1.5
|
MG32A-H6-5.5
|
3-5.5
|
15
|
41/41 | |
|
MG32A-H6-07
|
3.5-7
|
15
|
41/41 | ||
 |
M25*1.5
|
MG25A-H7-04
|
3-4.3
|
15
|
33/33
|
PG Thread
|
Seal Holes
|
Thread
|
Rroduct Types
|
Cable Range(mm)
|
Thread Lenth(mm)
|
Spanner Size(mm)
|
|
|
PG7
|
PG7A-H2-03
|
1.2-3
|
8.5
|
17/19 |
|
PG9
|
PG9A-H2-03
|
1.2-3
|
8.5
|
22/19 | |
|
PG11
|
PG11A-H2-04
|
1.6-4
|
10
|
24/22 | |
|
PG13.5
|
PG13.5A-H2-05
|
1.5-5.3
|
10
|
27/24 | |
|
PG16
|
PG16A-H2-06
|
2.5-6
|
10.8
|
30/27 | |
|
PG21
|
PG21A-H2-06
|
3-6.5
|
12
|
36/33 | |
|
PG21A-H2-08
|
4-8
|
12
|
36/33 | ||
|
PG29
|
PG29A-H2-10
|
5-10
|
15
|
46/41 | |
|
PG36
|
PG36A-H2-13
|
11-13
|
15
|
57/50 | |
|
|
PG7
|
PG7A-H3-02
|
1.2-2.6
|
8.5
|
17/19 |
|
PG9
|
PG9A-H3-02
|
1.2-2.6
|
8.5
|
22/19 | |
|
PG11
|
PG11A-H3-04
|
1.6-4
|
10
|
24/22 | |
|
PG13.5
|
PG13.5A-H3-05
|
2-5
|
10
|
27/24 | |
|
PG16
|
PG16A-H3-05
|
2-5
|
10.8
|
30/27 | |
|
PG21
|
PG21A-H3-05
|
2-5
|
12
|
36/33 | |
|
PG21A-H3-08
|
4-8
|
12
|
36/33 | ||
|
PG29
|
PG29A-H3-10
|
5-10
|
15
|
46/41 | |
| PG36 | PG36A-H3-12 | 10-12 | 15 | 57/50 | |
| PG42 | PG42-H3-12 | 10-12 | 15 | 64/62 | |
|
|
PG7
|
PG7A-H4-02
|
1-2.3
|
8.5
|
17/19 |
|
PG9
|
PG9A-H4-02
|
1-2.3
|
8.5
|
22/19 | |
|
PG11
|
PG11A-H4-03
|
1.2-3
|
10
|
24/22 | |
|
PG13.5
|
PG13.5A-H4-04
|
2-4
|
10
|
27/24 | |
|
PG16
|
PG16A-H4-02
|
1-2.5
|
10.8
|
30/27 | |
|
PG16A-H4-03
|
1.5-3.5
|
10.8
|
30/27 | ||
|
PG16A-H4-04
|
2-4.5
|
10.8
|
30/27 | ||
|
PG21
|
PG21A-H4-05
|
2-5
|
12
|
36/33 | |
|
PG21A-H4-06
|
4-6
|
12
|
36/33 | ||
|
PG21A-H4-07
|
3.5-7
|
12
|
36/33 | ||
|
PG29
|
PG29A-H4-07
|
5-7
|
15
|
46/41 | |
|
PG29A-H4-09
|
4.5-9
|
15
|
46/41 | ||
|
PG36
|
PG36A-H4-12
|
10-12
|
15
|
57/50 | |
|
|
PG16
|
PG16A-H5-03
|
1.5-3
|
10.8
|
30/27 |
|
PG21
|
PG21A-H5-03
|
3-6
|
12
|
36/33 | |
|
PG29
|
PG29A-H5-08
|
4-8
|
15
|
46/41
|
|
|
|
PG11
|
PG11A-H6-02
|
1-2
|
10
|
24/22 |
|
PG21
|
PG21A-H6-05
|
2.4-5.3
|
12
|
36/33 | |
|
PG29
|
PG29A-H6-5.5
|
3-5.5
|
15
|
46/41 | |
|
PG29A-H6-07
|
3.5-7
|
15
|
46/41 | ||
|
|
PG21
|
PG21A-H7-04
|
3-4.3
|
12
|
36/33
|
NPT Thread
|
Seal Holes
|
Thread
|
Rroduct Types
|
Cable Range(mm)
|
Thread Lenth(mm)
|
Spanner Size(mm)
|
|
|
NPT3/8
|
NPT3/8A-H2-04
|
1.6-4
|
10 | 22 |
|
NPT1/2
|
NPT1/2A-H2-5.3
|
3-5.3
|
10 | 27 | |
|
NPT3/4
|
NPT3/4A-H2-06
|
2.5-6
|
15 | 33 | |
|
|
NPT3/4 | NPT3/4A-H6-5.3 | 2.4-5.3 | 15 | 33 |
■ Payment Detail:
MOQ:
100pcs
Payments Method:
T/T, Western Union, Paypal are available.
Payment Terms:
30% deposit, balance payment before shipment.
