Plastic Wall Plug
- PRODUCT DETAIL
■ Product introduction:
1. Material:
Polypropylene(PE)
2. General Colors:
white and grey. Others are for custom service.
3. Packing Quantity:
1000pcs/bag
5. Show:

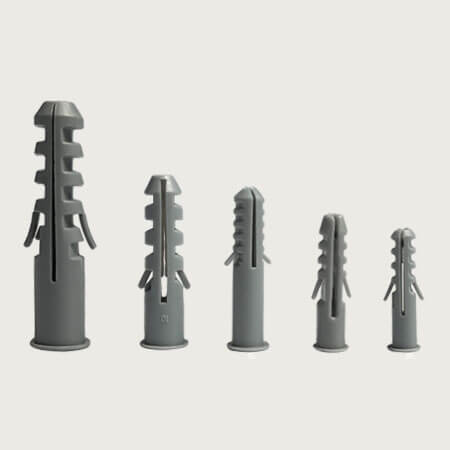

grey plastic wall plug

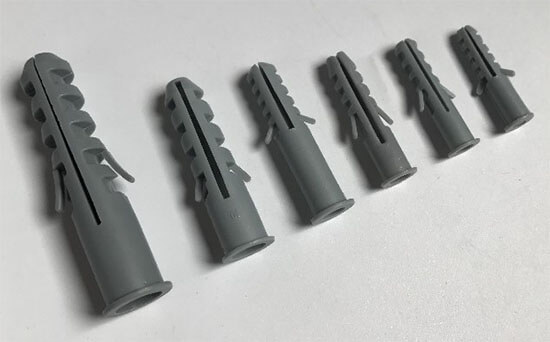

grey plastic wall plug
■ Product Structure:

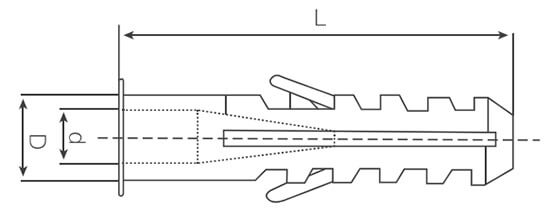

plastic wall plug structure
■ Product Size:
plastic wall plug size
|
Specification
|
L(mm)
|
d(mm)
|
D(mm)
|
Packing Quantity(pcs/bag)
|
|
Flex-PZG-5
|
26.5
|
3.5
|
5
|
1000
|
|
Flex-PZG-6
|
29
|
4.4
|
5.8
|
1000
|
|
Flex-PZG-7
|
32.6
|
4.9
|
6.8
|
700
|
|
Flex-PZG-8
|
39
|
5.3
|
7.7
|
500
|
|
Flex-PZG-10
|
42.5
|
7.7
|
9.5
|
300
|
|
Flex-PZG-12
|
57.4
|
9.8
|
12
|
150
|
plastic wall plug matched thread and drill bit size
|
Specification
|
Matched Thread Size
|
Matched Drill Bit Size
|
|
Flex-PZG-5
|
M3.5*25mm
|
M5
|
|
Flex-PZG-6
|
M4*30mm
|
M6
|
|
Flex-PZG-7
|
M4.5*30mm
|
M7
|
|
Flex-PZG-8
|
M5*40mm
|
M8
|
|
Flex-PZG-10
|
M7*40mm
|
M10
|
|
Flex-PZG-12
|
M10*55mm
|
M12
|
■ Payment Detail:
MOQ: 1000pcs
Payments Method: T/T, Western Union, Paypal are available.
Payment Terms: 30% deposit paid in advance, T/T balance before delivery.
Custom Service: plastic wall plug custom service are workable for us, such as packing quantity, packages, colors etc.
