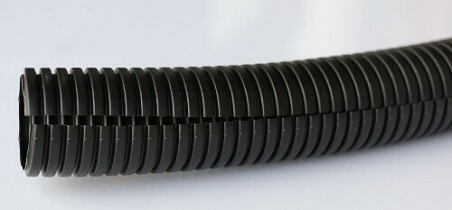

Split Flexible Conduit
- PRODUCT DETAIL
Products:
Materials:
polypropylene(PP)
Customizable Materials:
nylon(PA), polyethylene(PE)
Structure:
split
non-split are also workable for us.
Temperature:
-30℃~+110℃ (+130℃ in a short time)
Certificates:
ROHS, CE, ISO9001:2015
Brand:
FlexGlory, China
Show:

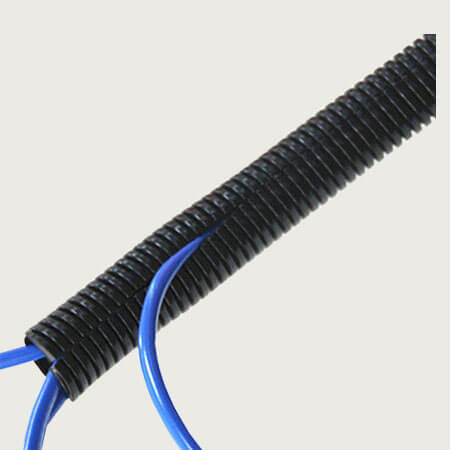

split flexible conduit show
Usage:

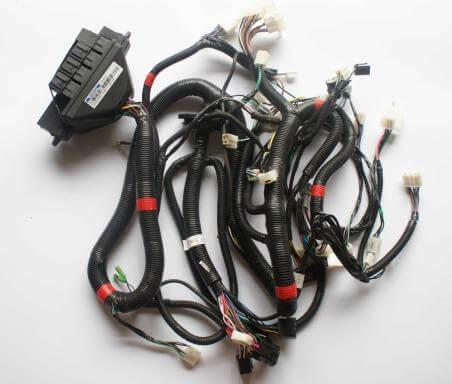

split flexible conduit is flexible and smooth, it is widely used in wire harness, especially in auto wire harness to protect wire and cables.
Size:
| Types | Inch Size | Inside Diameter(mm) | Outside Diameter(mm) | Length of Roll(m) |
| Flex-SPP-7 | 4.5 | 7.0 | 200 | |
| Flex-SPP-10 | 1/4″ | 6.5 | 10.0 | 100 |
| Flex-SPP-11 | 8.5 | 11.5 | 100 | |
| Flex-SPP-13 | 5/16″ | 10.0 | 13.0 | 100 |
| Flex-SPP-14 | 11.0 | 14.0 | 100 | |
| Flex-SPP-15 | 3/8″ | 12.0 | 15.8 | 100 |
| Flex-SPP-18 | 14.3 | 18.5 | 100 | |
| Flex-SPP-20 | 16.0 | 20.0 | 100 | |
| Flex-SPP-21 | 1/2″ | 17.0 | 21.2 | 100 |
| Flex-SPP-25 | 21.0 | 25.0 | 100 | |
| Flex-SPP-28 | 3/4″ | 23.0 | 28.5 | 100 |
| Flex-SPP-32 | 25.0 | 32.0 | 50 | |
| Flex-SPP-34 | 1″ | 29.0 | 34.5 | 50 |
| Flex-SPP-42 | 1-1/4″ | 36.0 | 42.5 | 25 |
| Flex-SPP-54 | 2″ | 48.0 | 54.5 | 25 |
| Flex-SPP-67 | 2-1/2″ | 56.3 | 67.2 | 25 |
| Flex-SPP-80 | 3″ | 66.5 | 80.0 | 20 |
| Flex-SPP-106 | 4″ | 91.0 | 106.0 | 20 |
|
Tolerance: ±0.2mm, non split is also workable for us. |
||||
Warehouse:

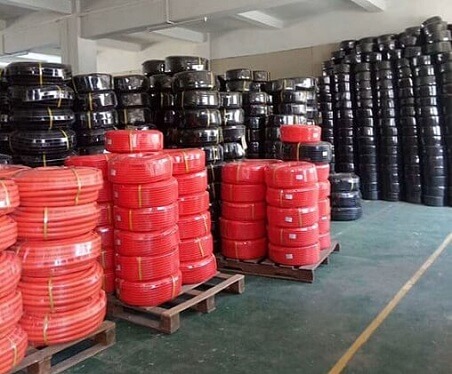

general sizes of split flexible conduit are in stock
Remarks:
MOQ:
100m
Payments:
T/T, Western Union, Paypal are available. Others are negotiated.
General Payment:
30% deposit, T/T balance before delivery.
Custom Service:
split flexible conduit custom service is workable for us. Such as materials, sizes, logo, packing quantity, package, split, fire-proof etc.
