Waterproof Cable Gland
- PRODUCT DETAIL
■ Product introduction:
Material:
PA66(UL approved), rubber
Thread:
Metric, PG, G(PF), NPT
Thread Length:
Both long thread and shor thread are workable for us.
Working Temperature:
-40℃~+120℃
Feature:
Waterproof cable gland can hold cable firmly and have a wider cable range. They are widely used in wire and cable managements. And it can also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

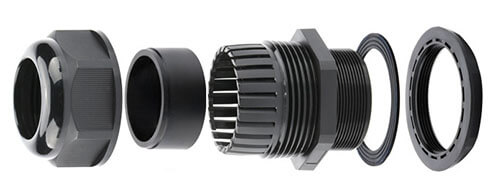

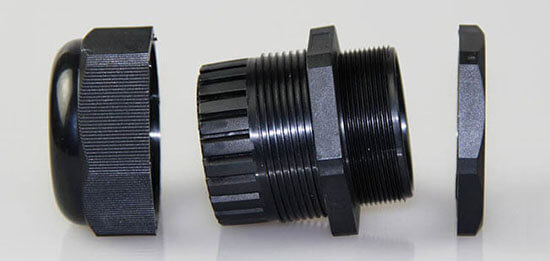

■ Product Structure:
waterproof cable gland structure show
waterproof cable gland structure show
■ Product Size:
Metric Thread( there are general thread cable glands and longer thread cable glands for your selection)
|
Thread
|
Part No.
|
Cable Range
|
Thread Length
|
Package
|
|
M8*1.5
|
FLEX-M8-4.8
|
2-4.8
|
7.5
|
50
|
|
M10*1.5
|
FLEX-M10-6
|
3-6
|
8
|
50
|
|
M12*1.5
|
FLEX-M12S-6
|
3-6.5
|
8.5
|
50
|
|
FLEX-M12L-6
|
3-6.5
|
15
|
50
|
|
|
FLEX-M12-7
|
4-8
|
8.5
|
50
|
|
|
FLEX-M12L-7
|
4-8
|
15
|
50
|
|
|
M16*1.5
|
FLEX-M16S-8
|
4-8
|
10
|
50
|
|
FLEX-M16SL-8
|
4-8
|
15
|
50
|
|
|
FLEX-M16-10
|
5-10
|
10
|
50
|
|
|
FLEX-M16L-10
|
5-10
|
15
|
50
|
|
|
M18*1.5
|
FLEX-M18-10
|
5-10
|
10
|
50
|
|
FLEX-M18L-10
|
5-10
|
15
|
50
|
|
|
M20*1.5
|
FLEX-M20M-10
|
5-10
|
10
|
50
|
|
FLEX-M20S-12.5
|
6-12.5
|
10
|
50
|
|
|
FLEX-M20SL-12.5
|
6-12.5
|
15
|
50
|
|
|
FLEX-M20-13.5
|
8.5-14
|
11
|
50
|
|
|
FLEX-M20L-13.5
|
8.5-14
|
15
|
50
|
|
|
M22*1.5
|
FLEX-M22-13.5
|
8.5-14
|
11
|
50
|
|
M25*1.5
|
FLEX-M25S-14
|
8.5-14
|
11.6
|
50
|
|
FLEX-M25-18
|
12.5-18
|
11.6
|
50
|
|
|
FLEX-M25L-18
|
12.5-18
|
15
|
50
|
|
|
M32*1.5
|
FLEX-M32-25
|
17-25
|
15
|
20
|
|
M36*1.5
|
FLEX-M36-25
|
17-25
|
12
|
20
|
|
M40*1.5
|
FLEX-M40-31
|
23-32
|
15
|
10
|
|
M50*1.5
|
FLEX-M50-41
|
30-41
|
15
|
10
|
|
M63*1.5
|
FLEX-M63-45
|
35-45
|
18
|
10
|
PG Thread( there are general thread cable glands and longer thread cable glands for your selection)
|
Thread
|
Product Type
|
Cable Range
|
Thread Length
|
Package
|
|
PG7
|
FLEX-PG7S-6
|
3-6.5
|
8
|
50
|
|
FLEX-PG7SL-6
|
3-6.5
|
15
|
50
|
|
|
FLEX-PG7-7
|
4-8
|
8
|
50
|
|
|
PG9
|
FLEX-PG9-7.5
|
4-8
|
8.2
|
50
|
|
FLEX-PG9L-7.5
|
4-8
|
15
|
50
|
|
|
PG11
|
FLEX-PG11-10
|
5-10
|
10
|
50
|
|
FLEX-PG11L-10
|
5-10
|
15
|
50
|
|
|
PG13.5
|
FLEX-PG13.5-12.5
|
6-12.5
|
10
|
50
|
|
FLEX-PG13.5L-12.5
|
6-12.5
|
15
|
50
|
|
|
PG16
|
FLEX-PG16-14
|
8.5-14
|
10.5
|
50
|
|
FLEX-PG16L-14
|
8.5-14
|
15
|
50
|
|
|
PG19
|
FLEX-PG19-14
|
8.5-14
|
11
|
50
|
|
PG21
|
FLEX-PG21-17.5
|
12.5-18
|
12
|
50
|
|
FLEX-PG21L-17.5
|
12.5-18
|
15
|
50
|
|
|
PG25
|
FLEX-PG25-20
|
14-20
|
13
|
50
|
|
PG29
|
FLEX-PG29-25
|
17-25
|
12
|
20
|
|
PG36
|
FLEX-PG36-31
|
24-32
|
15
|
10
|
|
PG42
|
FLEX-PG42-41
|
30-41
|
15
|
10
|
|
PG48
|
FLEX-PG48-45
|
35-45
|
18.2
|
10
|
G(PF) Thread
|
Thread
|
Product Type
|
Cable Range
|
Thread Length
|
Package
|
|
1/4″
|
FLEX-G1/4-5
|
3-5.3
|
8.5
|
50
|
|
FLEX-G1/4-8
|
4-8
|
8.5
|
50
|
|
|
3/8″
|
FLEX-G3/8-7
|
3-7
|
10
|
50
|
|
FLEX-G3/8-10
|
5-10
|
10
|
50
|
|
|
1/2″
|
FLEX-G1/2-9
|
5-9
|
10
|
50
|
|
FLEX-G1/2-12.5
|
6-12.5
|
10
|
50
|
|
|
3/4″
|
FLEX-G3/4-13
|
7-13
|
12
|
50
|
|
FLEX-G3/4-17.5
|
12.5-18
|
12
|
50
|
|
|
1″
|
FLEX-G1-17.5
|
13-17.5
|
15
|
20
|
|
FLEX-G1-25
|
17-25
|
15
|
20
|
|
|
1-1/4″
|
FLEX-G1-1/4-25.5
|
17-25.5
|
15
|
10
|
|
FLEX-G1-1/4-31
|
24-32
|
15
|
10
|
|
|
1-1/2″
|
FLEX-G1-1/2-32
|
25-32
|
16
|
10
|
|
FLEX-G1-1/2-41
|
30-41
|
16
|
10
|
NPT Thread
|
Thread
|
Product Type
|
Cable Range
|
Thread Length
|
Package
|
|
3/8″
|
FLEX-NPT3/8-7
|
3-7
|
10
|
50
|
|
FLEX-NPT3/8-10
|
5-10
|
10
|
50
|
|
|
1/2″
|
FLEX-NPT1/2-9
|
5-9
|
10
|
50
|
|
FLEX-NPT1/2-13
|
6-12.5
|
10
|
50
|
|
|
3/4″
|
FLEX-NPT3/4-13
|
7-13
|
15
|
50
|
|
FLEX-NPT3/4-18
|
12.5-18
|
15
|
50
|
|
|
1″
|
FLEX-NPT1-17.5
|
13-17.5
|
17
|
20
|
|
FLEX-NPT1-25
|
17-25
|
17
|
20
|
|
|
1-1/4″
|
FLEX-NPT1-1/4-25.5
|
17-25.5
|
17
|
20
|
|
FLEX-NPT1-1/4-31
|
24-32
|
17
|
20
|
■ Payment Detail:
MOQ:
100pcs
Payments:
T/T, Western Union, Paypal are available.
General Payment:
30% deposit paid in advance, T/T balance before delivery.
